The batch overview documents

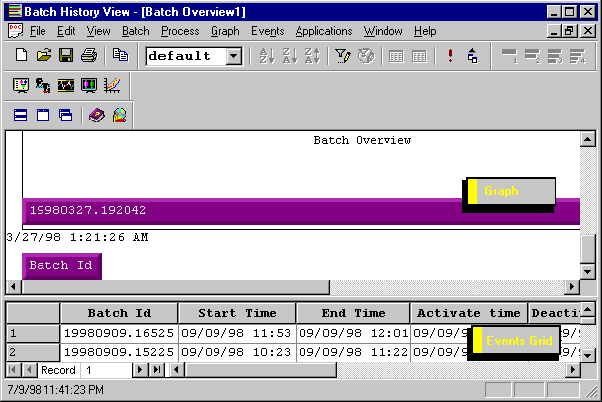

The batch overview document. Click Graph and Events Grid for more information.

Batch Graph

The Batch Graph (when in an overview document) shows all the batches in the Batch Historian server. To view details on one batch, select the batch (select from the graph or events grid) and use the menu item Batch → Details. This opens a batch details document. To compare two batches, select two batches and use the menu item Batch → Comparison. This opens a batch comparison document.

Events Grid

The events grid shows batch related events in a tabular format. You can apply filters to limit the information and apply sort methods to order the information. Batch overview and Batch detail documents contain one grid, while batch comparison documents contain two grids (one grid for each batch). For a more detailed view of all events for a batch, select the batch and use the menu item Batch → Events.
