Example IS application with the MTL9122

The following figure shows an IS application that allows up to 16 devices on the segment. The maximum cable length on the MTL9122 portion of the segment is 1900 meters and the maximum total cable length per segment is 1900 meters.

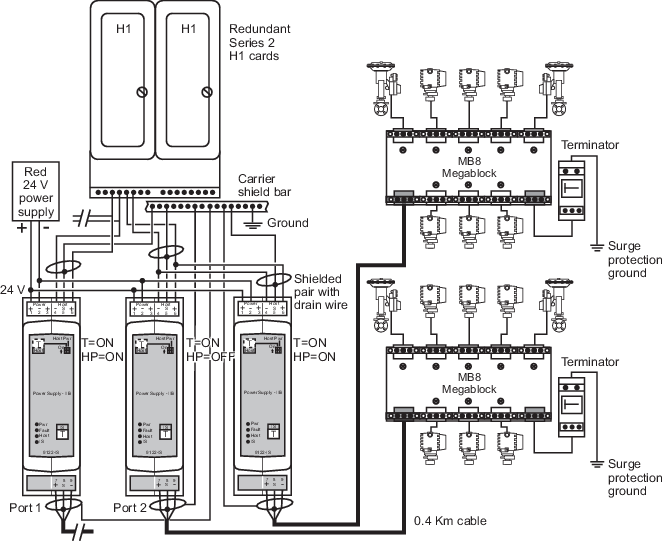

Figure: 16 IS devices on a segment

Note

Ensure that all components are rated and certified for IS applications.
