Connect the MTL IS power supplies to the hazardous area

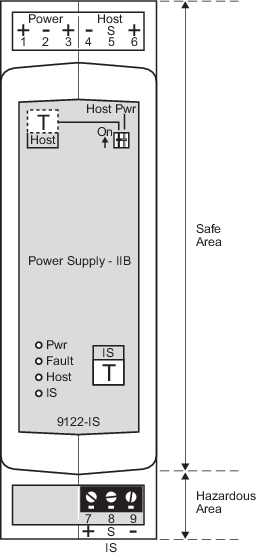

Refer to the following image for the location of the hazardous area connectors on the power supply.


  1. Connect the IS area fieldbus segment positive (+) wire to pin 7.
  2. Connect the IS area fieldbus segment shield (S) wire to pin 8 and to a shield ground connection.
  3. Connect the IS area fieldbus segment negative (-) wire to pin 9.
