Exploring function block templates in the DeltaV library

Function block templates each contain a single function block.

Open DeltaV Explorer if it is not already open.

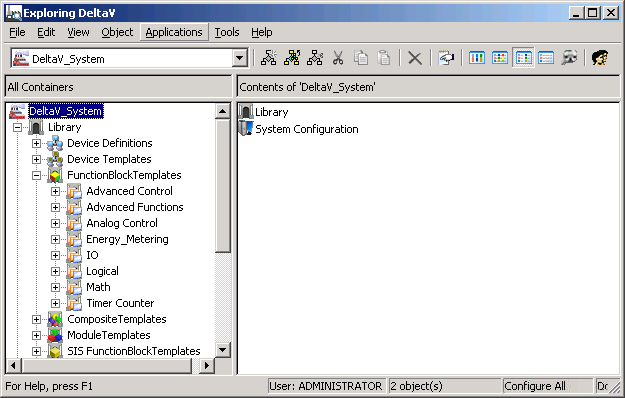

Expand Library → Function Block Templates.

The items listed are the categories of function block templates available.

Click the Details button or select View → Details

This lets you see at a glance the object name, the type of object, a description, and other information.

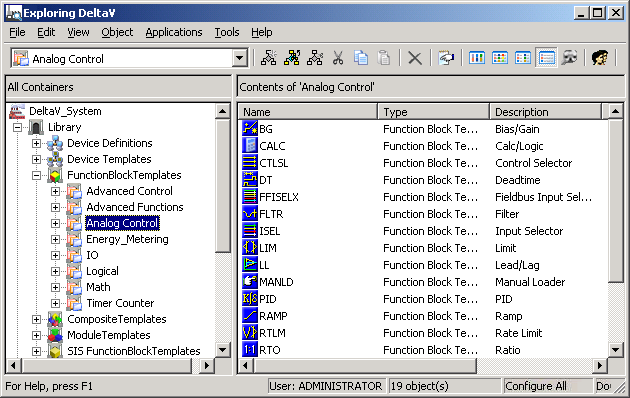

Select Analog Control.

The items listed in the right pane are the basic function blocks used in analog control, including bias/gain, deadtime, filter, lead/lag, and so on.

Tip

You can change the width of columns in the right pane by clicking and holding the line between columns in the column title bar and dragging the line right or left.

Click the other Function Block Template categories to see their contents.
Close Function Block Templates.
