Exploring module templates in the DeltaV library

Module templates provide basic control strategies for common control tasks such as analog control, monitoring, motor control, and valve control.

• Expand Module Templates and Analog Control.

• Click Analog Control to see the details on the module templates in this category.

• Select PID_LOOP. The contents are listed in the right pane.

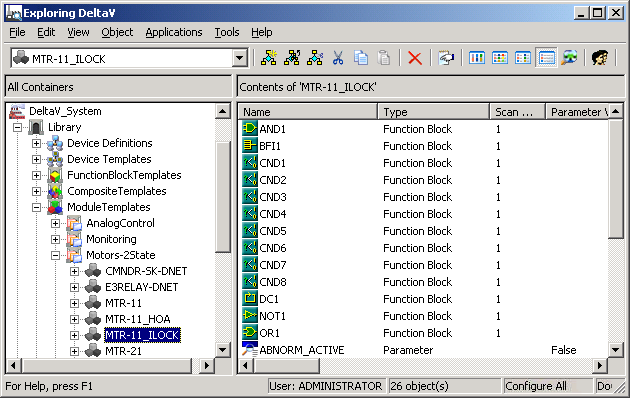

• Expand Motors-2State, then select MTR-11_ILOCK.





  You will use this module template later to configure a pump for the tank process example.

• Click beside Motors-2State to close the category.
