AI 16-Channel Terminal Block specifications

Installation notes

This terminal block is used to terminate wiring for the S-series AI 16-channel 4-20 mA HART card. Set the terminal block key to A2 before installing the card.

Specifications

Table: AI 16-Channel Terminal Block specifications
Item Specification
Voltage rating 30 VDC
Maximum current 100 mA
Mounting Assigned slot of I/O carrier

Terminal block connections

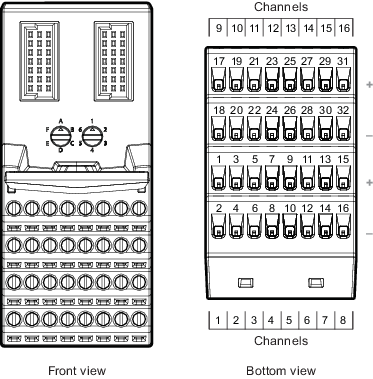

Figure: AI 16-Channel Terminal Block


Table: Channel assignments
Terminal on terminal block Channel nomenclature Terminal on terminal block Channel nomenclature
Terminal 1 Channel 1+ Terminal 17 Channel 9+
Terminal 2 Channel 1- Terminal 18 Channel 9-
Terminal 3 Channel 2+ Terminal 19 Channel 10+
Terminal 4 Channel 2- Terminal 20 Channel 10-
Terminal 5 Channel 3+ Terminal 21 Channel 11+
Terminal 6 Channel 3- Terminal 22 Channel 11-
Terminal 7 Channel 4+ Terminal 23 Channel 12+
Terminal 8 Channel 4- Terminal 24 Channel 12-
Terminal 9 Channel 5+ Terminal 25 Channel 13+
Terminal 10 Channel 5- Terminal 26 Channel 13-
Terminal 11 Channel 6+ Terminal 27 Channel 14+
Terminal 12 Channel 6- Terminal 28 Channel 14-
Terminal 13 Channel 7+ Terminal 29 Channel 15+
Terminal 14 Channel 7- Terminal 30 Channel 15-
Terminal 15 Channel 8+ Terminal 31 Channel 16+
Terminal 16 Channel 8- Terminal 32 Channel 16-
