AI 8-Channel Terminal Block (2 or 4-wire) specifications

Installation notes

This terminal block is used to terminate wiring for the S-series AI 8-channel 4-20 mA HART card. Set the terminal block key to A1 before installing the card.

Specifications

Table: AI 8-Channel Terminal Block (2 or 4-wire) specifications
Item	Specification
Voltage rating	30 VDC
Maximum current	1 A
Mounting	Assigned slot of I/O carrier

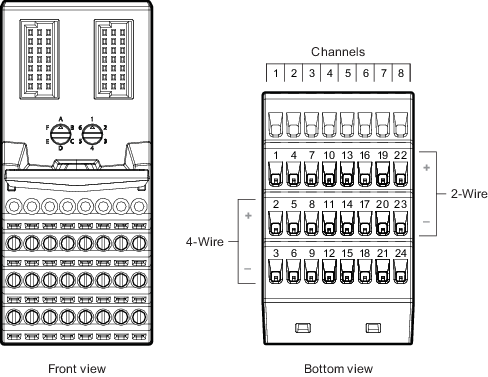

Terminal block connections

Figure: AI 8-Channel Terminal Block (2 or 4-wire)
