CHARM Relay Output Terminal Block specifications
Installation notes
The CHARM Relay Output Terminal Block is used in high output current applications. It uses a 1 Form C relay.
The terminal block requires the DO 24 VDC high-side CHARM to drive the relay coil.
The terminal block's keying mechanism sets itself to match the inserted CHARM.
Specifications
Table: CHARM Relay Output Terminal Block specifications
Item
Specification
Number of connections
3 (normally open contact, normally closed contact, common contact)
Relay contact ratings
28.8 VDC at 5 A switching current
48 VDC at 0.4 A switching current
250 VAC at 5 A switching current

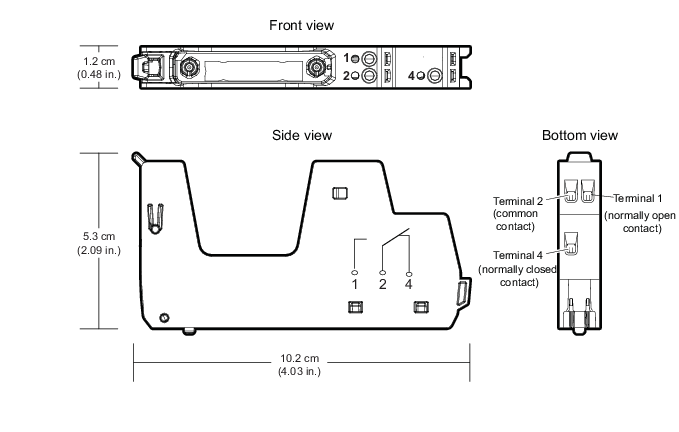

Front and side views and dimensions
Figure: CHARM Relay Output Terminal Block
