Specifications
| Item | Specification |
|---|---|
| AC input | 120/230 VAC nominal, 90 VAC to 264 VAC range,
47 Hz to 63 Hz, single-phase
Current: 4.5 A |
| Output power rating 60°C | 24.6 VDC at 12.0 A |
| Output power rating 70°C | 24.6 VDC at 9.0 A |
| Inrush current | 40/25 A maximum (hot/cold start) |
| Hold-up time | 20 ms (from 90 to 264 VAC input) |
| Ripple and noise | 1% PK to PK max (Bandwidth 20 MHz) |
| Output overvoltage protection | 110% - 120% |
| Power factor | 0.98 at full rated load |
| Input protection | Internally fused, nonreplaceable fuses.
Note: The internal fuse is for an internal fault condition only. Shorts and overload will not cause the fuse to fail. |
| Alarm relay contact rating | 30 VDC at 2.0 A, 250 VAC at 2.0 A |
| Redundancy output isolation diode | Integrated in unit
Isolation diode not required |

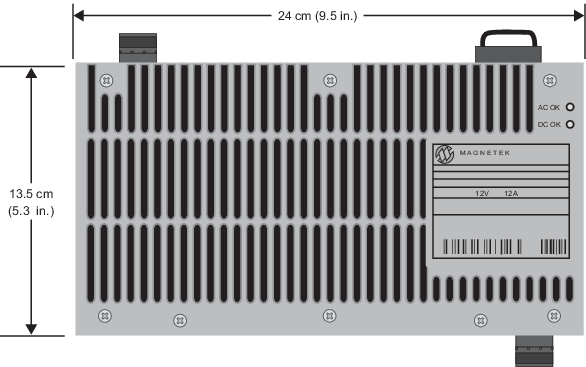

| Dimensions on horizontal DIN rail | Height (max): 13.5 cm (5.3 in.)
Width (max): 24.0 cm (9.5 in.) Depth (max): 10.6 cm (4.2 in.) |
Dimensions and connectors on the power supplies

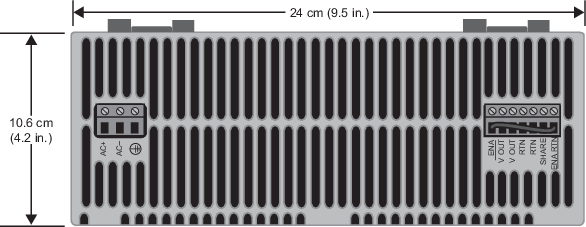

The connectors on the top of the bulk power supplies are:
120/230 VAC input
: Protective earth
24 VDC output
- ENA: Output enable. The wire from ENA to ENA RTN is connected at the factory.
- V OUT: DC voltage output (+)
- V OUT: DC voltage output (+)
- RTN: DC voltage return (-)
- RTN: DC voltage return (-)
- SHARE: This connection is required for redundancy and load-sharing applications.
- ENA RTN: Output enable return. The wire from ENA to ENA RTN is connected at the factory.
Alarm relay contacts
The alarm relay contacts are on the bottom of the bulk power supplies:
