DeviceNet card specifications

Installation notes

The DeviceNet terminal block is recommended to provide terminations for field wiring for the DeviceNet card.
The shield on the terminal block can be grounded at pin 8 if required.
This card requires an S-series controller.

Table: DeviceNet card specifications
Item	Specification
Number of Ports	One
Port Type	DeviceNet
LocalBus current (12 VDC nominal), per card	400 mA typical, 600 mA maximum
Field circuit power (24 VDC nominal), per card	40 mA maximum at 24 VDC (±10%)
Heat dissipation	8.2 W
Mounting	Assigned slot of I/O carrier

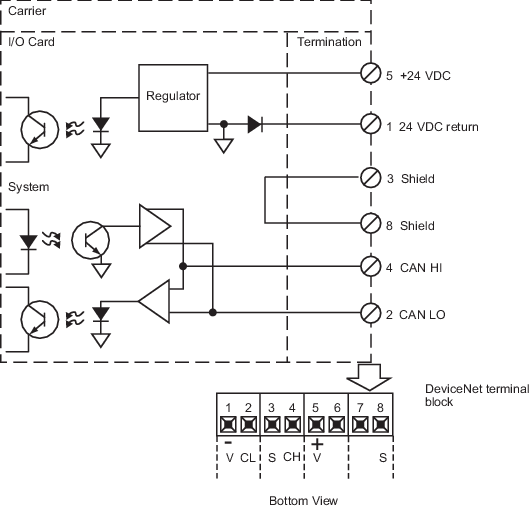

Figure: DeviceNet card wiring diagram
