Installation notes
- The CHARM I/O Scanner Module is installed in a scanner module slot of a CHARM I/O Gateway Carrier or CHARM I/O Block Carrier. CHARM I/O Scanner Modules in the CHARM I/O Gateway Carrier communicate with the CIOC or CSLS. CHARM I/O Scanner Modules in the CHARM I/O Block Carrier communicate with the CHARM I/O Gateway.

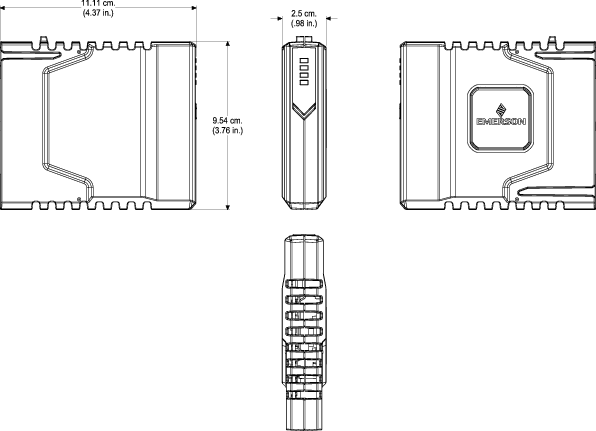

Specifications
| Item | Specification |
|---|---|
| Number of Scanner Modules per I/O Gateway or I/O Block Carrier | One for simplex operation; two for redundant operation |
| Maximum power requirement | 24 VDC ±10% at 150 mA with no load |
| Maximum heat dissipation |
3.5 W in simplex operation 6.25 W in redundant operation |
| Operating temperature | -40 to 70 °C |
| Storage temperature | -40 to 85 °C |
| Relative humidity | 5 to 95%, non-condensing |
| Protection from airborne contaminants | ISA-S71.04-1985 Airborne Contaminants Class G3 conformal coating |
| Shock | 10 g half-sine wave for 11 ms |
| Vibration | 1 mm peak to peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz |
| Ingress protection class | IP20 |
