VIM card specifications

Installation notes

The VIM card mounts in the right slot of a Power / Controller Carrier.
The VIM card requires a controller and a dedicated system power supply (24 VDC).
The Power / Controller Carrier holding a VIM card and power supply must be installed to the left of the first 8-Wide I/O Carrier on the DIN rail. It can be installed either to the left or right of the Power / Controller Carrier holding the controller and its power supply.
This card supports redundancy.

Table: VIM card specifications
Item	Specifications
Input power requirement (supplied through the System Power Supply (24 VDC)	+5 VDC @ 750 mA maximum
Fuse protection	3.0 A , nonreplaceable internal fuses
External connectors	VIMNet network: One, 10BASE-TX with 8-pin RJ45 connector Redundancy link: One RJ11 serial connector
Mounting	Right slot of Power / Controller Carrier

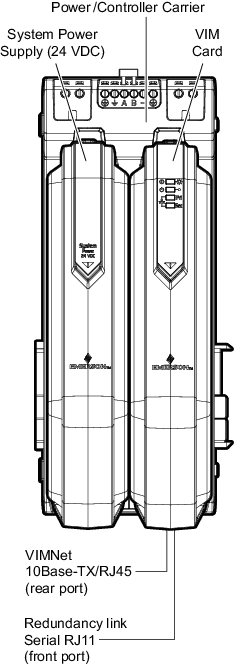

Figure: VIM card and power supply on the Power / Controller Carrier
