Other twisted pair network examples

There can be no more than six switches in series between any two devices in any path in this type of network.

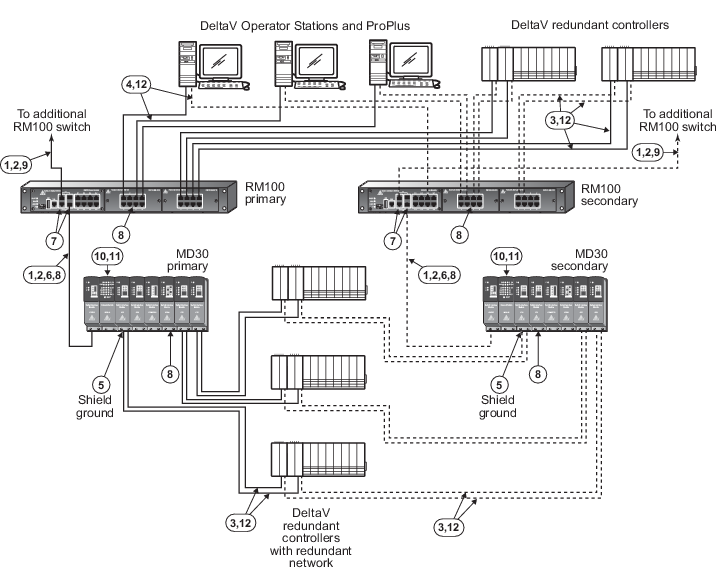

Figure: DeltaV RM100 and MD30 switches in a twisted pair network

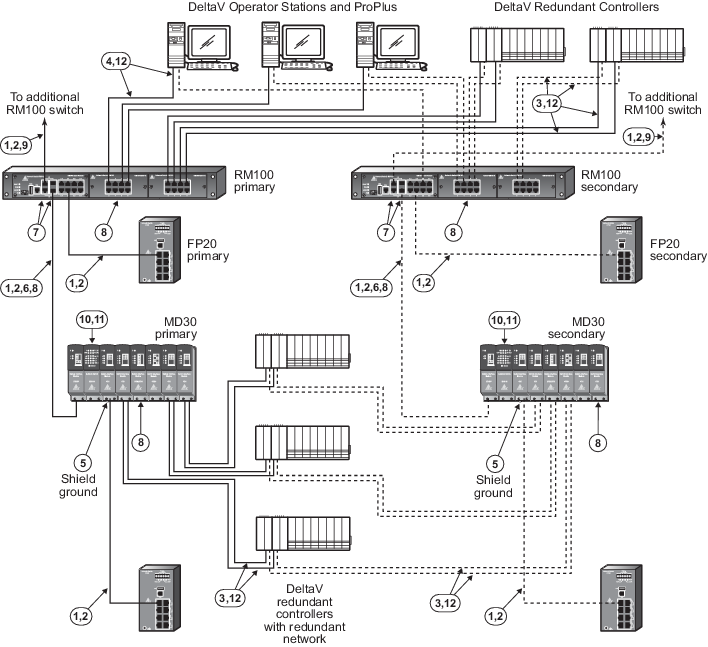

Figure: DeltaV RM100, MD30, and FP20 switches in a twisted pair network


Callout Description
100 m (max) straight-through or crossover cable. Cat. 5(e) Screened Twisted Pair cable is required between switches.
To prevent ground loops, build this cable assembly with a shielded, metal-enclosed RJ45 connector on one end and an isolated, plastic-enclosed RJ45 connector on the other end.
100 m (max) straight-through or crossover cable. The shield on the controller’s RJ45 connector connects only to a Faraday cage in the controller; not to the controller’s DC ground. Therefore, the RJ45 connectors are floating and the single point of ground is made at the switch to which the controller is connected. Build this cable assembly with a shielded, metal-enclosed RJ45 connector on both ends.
100 m (max) straight-through or crossover cable. To prevent ground loops, build this cable assembly with a shielded, metal-enclosed RJ45 connector on one end and an isolated, plastic-enclosed RJ45 connector on the other end. The metal connector end of this cable assembly/link must be placed on the switch and not on the PC.
Use a ring tongue terminal to connect the ground screw of the switch to a suitable shield ground. This connection provides a ground for the twisted pair Ethernet shielded connectors.
The type of uplink ports on this switch are determined by the optional modules chosen. In this example, all MD30 switches have a gigabit module installed on the left side of the switch that used for the uplink to the RM100 switch. This module contains two, 10/100/1000mb/s twisted pair ports and two gigabit SFP slots for various types of optional SFP transceivers. Only two ports on this module can be used simultaneously in any mix. The SFP transceivers are available in singlemode and multimode fiber-optic versions. Each of the remaining six port modules on the right side of the switch have four 10/100mb/s twisted pair ports for a total of 24 ports and any combination of ports can be used for 10/100mb/s uplinks to other switches or for edge devices such as workstations and controllers. Other modules are available in 100mb/s only communications in single and multimode fiber-optic versions.
The type of uplink ports on this switch consists of two fixed 10/100/1000mb/s ports and two SFP ports. The SFP ports can be fitted with optional fiber-optic SFP transceivers for long distance communications. Only two uplinks can be active at a time in any combination of twisted pair and SFP. Refer to the ordering information for the available SFP transceivers.
All twisted pair ports are configured to autosense speed, autonegotiate duplex, and autodetect polarity. Do not hard-configure speed or duplex on the twisted pair switch ports or duplex mismatches, which create communications failures, could occur. Always allow the switch to autosense speed and autonegotiate duplex. All unused ports of the switch can be deactivated (locked down) from the Network Device Command Center (NDCC) after all initial connections are made to the switch. If additional controllers or workstations need to be connected to unused ports after the initial lock down, an additional software command from the NDCC is required to unlock the ports. After the final connections are made, the lock down command should be reissued to the switch to lock down any remaining unused ports. Once the ports are in a lock down state, only the original device can communicate on its original port.
If more than one RM100 switch is required to increase port count in an area, use any of the gigabit uplink ports for the switch-to-switch connection to provide ample performance headroom on these aggregating links. 100mb/s links can also be used for this purpose but normally these links are reserved for single devices on the edge of the network such as controllers and workstations that require much less bandwidth than switch-to-switch links.
The serial port is not required for process communications; it is used only for occasional out-of-band switch setup and management.
The power connector (not shown) is used for a +24VDC power supply input and relay contacts.
This is a 10/100mb/s twisted pair link.
