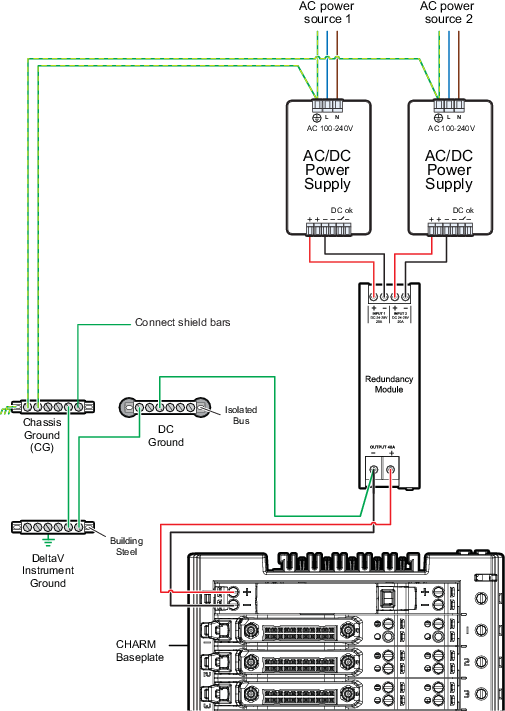

The baseplates' injected power
bus that supports 24 VDC or 120/230 VAC can be used in installations with many
isolated CHARMs. This bus receives power through the CHARM Address Terminal.
Connect two bulk power supplies to a redundancy module to create a
redundant common power distribution bus for redundant power to field devices.
Connect the common redundant power distribution bus to the Address
Terminal through a 10 A fuse to create a 12 channel, system powered baseplate.
