| Channel type and functionality
|

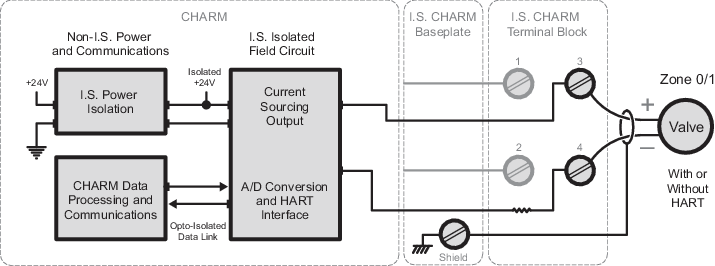

Intrinsically safe analog output:
- 4-20 mA with HART
- 0-20 mA
|
| Nominal signal range (span)
|
|
| Full signal range
|
0-22 mA
|
| Accuracy over temperature range
|
- 0.25% of span (0
to 60°C)
- 0.5% of span (40°C
to 70°C)
|
| Resolution
|
16 bits
|
| Calibration
|
None required
|
| Compliance voltage
|
- Voltage to load:
15 V minimum at 20 mA
- Load resistance:
750 Ω maximum
|
| Channel isolation
|
Galvanically isolated according to EN
60079-11, voltage peak value 375 VDC.
|
| Input power requirements
|
+24 VDC input power: +24 VDC ±10% at 56 mA
maximum
|
| CHARM heat dissipation (includes terminal
block)
|
1.1 W
|
| HART scan time
|
Typically less than one second but is
dependent on HART communication loading and the capability of the HART device.
|
| HART Communications
|
- HART 7
pass-through request/response
- HART 7 variable
report
- Field device
status report
|
