Installation notes
- The I.S. CHARM Protection Cover installs in any I.S. CHARM Terminal Block and is used to protect an unused I.S. CHARM Terminal Block from damage and to enable spare wires to be easily connected to ground.

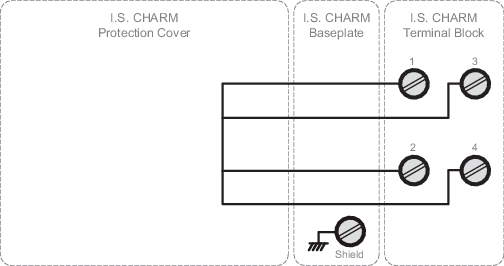

- When the I.S. CHARM Protection Cover is installed, all terminals on the I.S. CHARM Terminal Block are shorted. Connections to the chassis ground from an unused terminal can be daisy chained to unused terminals on the next I.S. CHARM terminal block and I.S. CHARM Protection Cover.
- To install the I.S. CHARM Protection Cover, open the latch on the I.S. CHARM Terminal Block, insert the I.S. CHARM Protection Cover, and push the cover until the latch closes.
- The I.S. CHARM Protection Cover does not affect the key setting on the I.S. CHARM Terminal Block.
