I.S. CHARM Thermocouple / mV Terminal Block specifications

Installation notes

The I.S. CHARM Thermocouple / mV Terminal Block installs on the I.S. CHARM Baseplate and holds a single I.S. Thermocouple / mV input CHARM. It provides the keying and field wiring for the I.S. Thermocouple / mV input CHARM.
The terminal block's keying mechanism is fixed to allow only an I.S. Thermocouple / mV input CHARM.

Specifications

Table: I.S. CHARM Thermocouple / mV Terminal Block specifications
Item	Specification
Number of connections	2
Power rating	45 mA maximum at 28 VDC

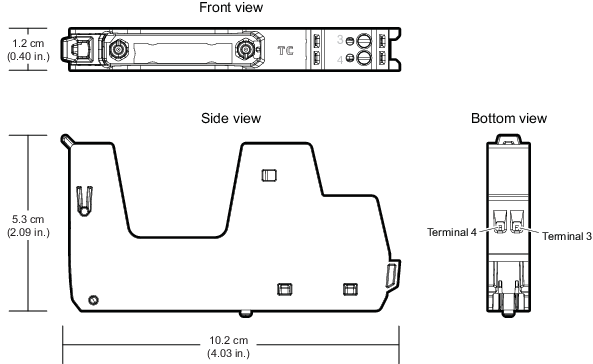

Front and side views and dimensions

Figure: I.S. CHARM Thermocouple / mV Terminal Block
