Injecting additional power to S-series I/O

Inject power to I/O on another DIN rail

When the cards that require additional system power are on an 8-Wide I/O carrier on a different DIN rail connected with a Left Extender and cable, inject the power between the Left Extender and the 8-Wide I/O carrier.

  1. Snap the Power/Controller carrier onto the DIN rail between the Left Extender and 8-Wide I/O carrier.
  2. Install simplex or redundant power supplies onto the Power/Controller carrier.
  3. Connect each carrier to the adjacent carrier by sliding together the pins on the sides of the carriers.
  4. Remove the jumper from the power terminals on either the Power/Controller carrier or the Left Extender.

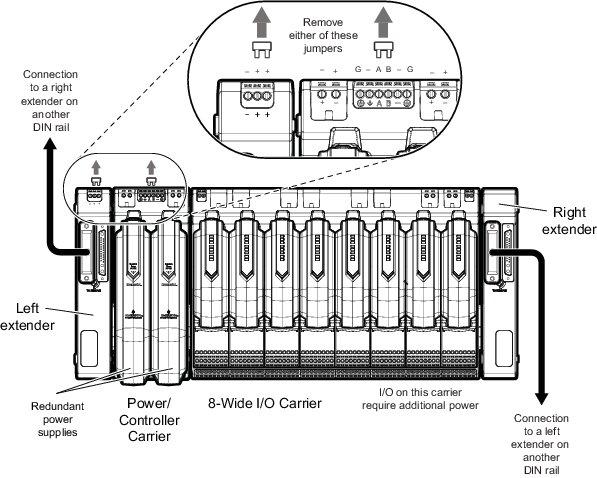

    Figure: Redundant system power injected between carriers on the same DIN rail
