The following images show how to install a redundant and simplex Smart
Wireless Field Link in a safe area and in Zone 2 or Class 1 Div 2 locations.

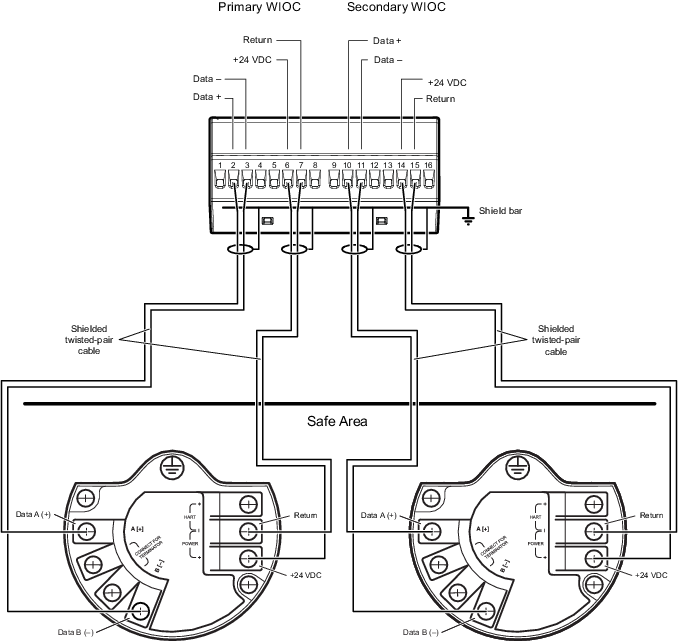

Figure: Installing a redundant Smart Wireless Field Link in a safe
area

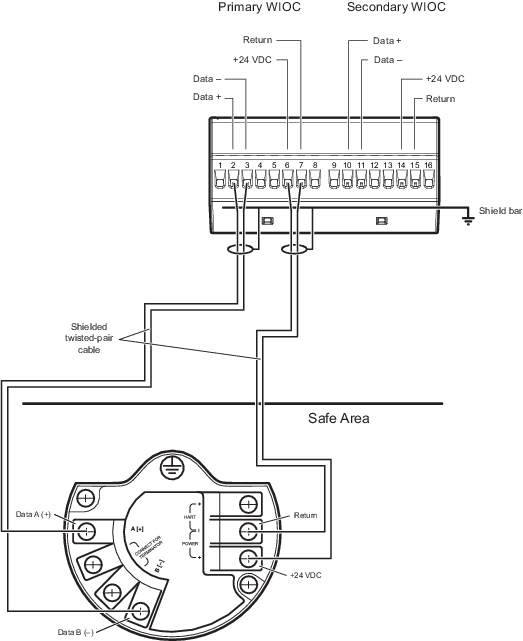

Figure: Installing a simplex Smart Wireless Field Link in a safe
area

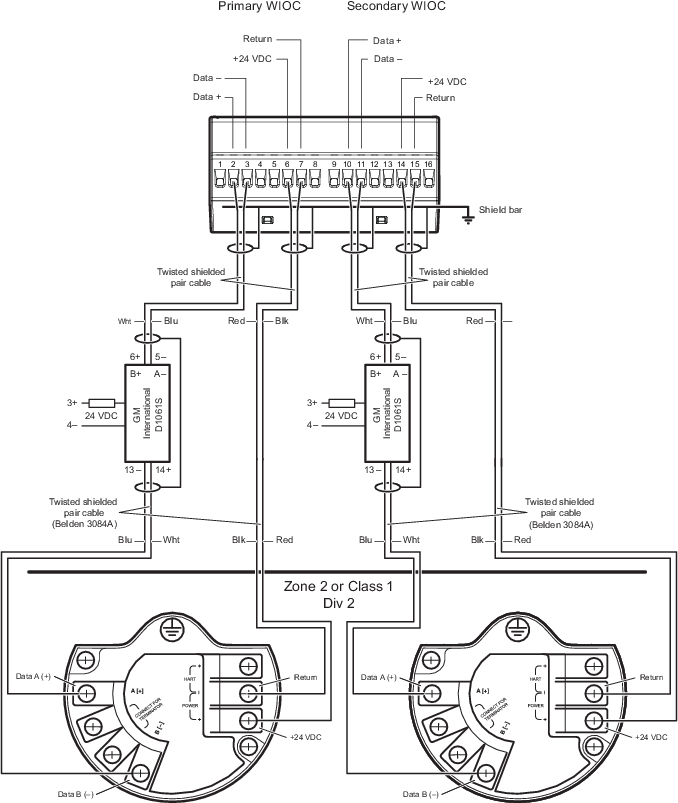

Figure: Installing a redundant Smart Wireless Field Link in a Zone 2 or
Class 1 Div 2 location

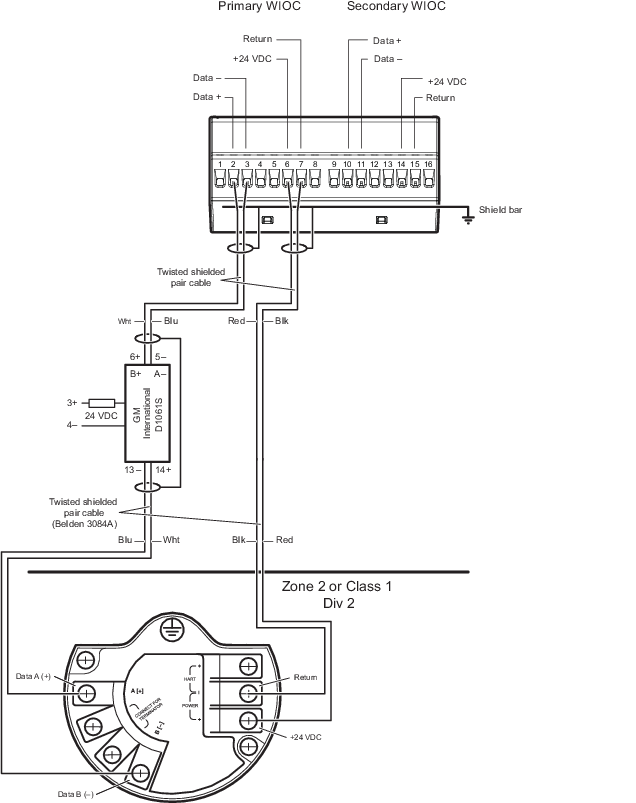

Figure: Installing a simplex Smart Wireless Field Link in a Zone 2 or
Class 1 Div 2 location
