Interface Terminal Block specifications
Installation notes
This terminal block is used to terminate wiring for the S-series AS-Interface and Serial cards.
Set the terminal block key to D1 before installing the AS-Interface card and to D4 before installing the Serial card.
Specifications
Table: Interface Terminal Block specifications
Item
Specification
Voltage rating
35 VDC
Maximum current
1.0 A
Mounting
Assigned slot of I/O carrier
Terminal block connections

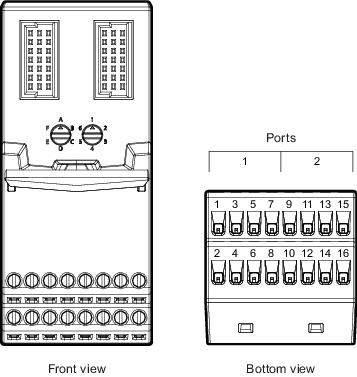

Figure: Interface Terminal Block
