DeltaV RM1040 Smart Switches

Installation notes

• The RM1040 Smart Switches can be mounted on a 19-inch rack or on a wall. If the switch is mounted on a 19-inch rack, be sure to install sliding mounting rails to properly hold the switch.
• Ensure that there is at least one free rack space (approximately 5 cm) above and below the switch because heat is discharged through the switch housing.
• The RM1040 Smart Switches have a fixed number of ports (16).
• The RM1040 Smart Switches support redundant input power.

Port information

Table: Port information for the DeltaV RM1040 Smart Switches

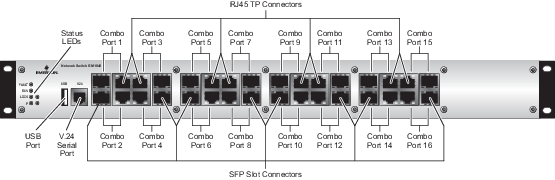

Model	Number and types of ports	Image
RM1040 Smart Switch	Sixteen 10/100/1000 mb/s twisted-pair ports with RJ45 connectors Sixteen 100/1000mb/s SFP-based ports Only one port in each TP/SFP port pair can be used at a time. Either the TP or the SFP port in each of the 16 pairs can be used, so that up to 16 of the 32 ports can be used simultaneously.
