Installation notes

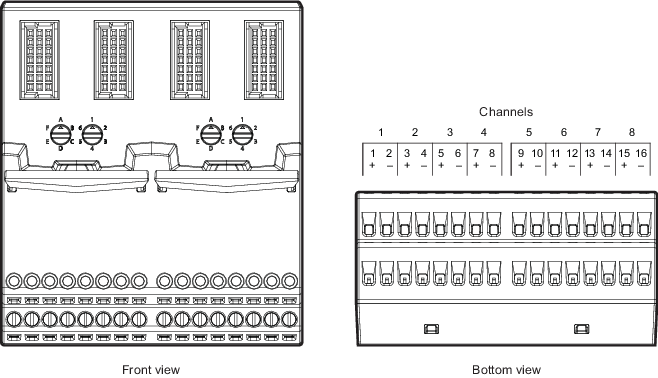

This terminal block is used to terminate wiring for the S-series Redundant AO 8-channel 4-20 mA HART card. Set the terminal block key to A4 before installing the card.
Specifications
| Item | Specification |
|---|---|
| Voltage rating | 30 VDC |
| Maximum current | 200 mA |
| Operating temperature | -40°C to 70°C (-40°F to 158°F) |
| Mounting | Assigned slots of I/O carrier. The lower slot number must be odd and the upper slot number must be the next higher even number. For example, slots 1 and 2, slots 3 and 4, and slots 5 and 6 are valid pairs. Slots 2 and 3 are not a valid pair. |
