Redundant H1 with Integrated Power Terminal Block specifications

Installation notes

This terminal block is used to terminate wiring for the redundant S-series H1 card with Integrated Power. Set the terminal block key to D6 before installing the card.
Fieldbus segments must be terminated at each end. The redundant H1 with Integrated Power Terminal Blocks contain an integrated terminator for each segment.

Table: Redundant H1 with Integrated Power Terminal Block specifications
Item	Specification
Voltage rating	35 VDC
Maximum current	500 mA
Operating temperature	-40°C to 70°C (-40°F to 158°F)
Mounting	Assigned slots of I/O carrier. The lower slot number must be odd and the upper slot number must be the next higher even number. For example, slots 1 and 2, slots 3 and 4, and slots 5 and 6 are valid pairs. Slots 2 and 3 are not a valid pair.

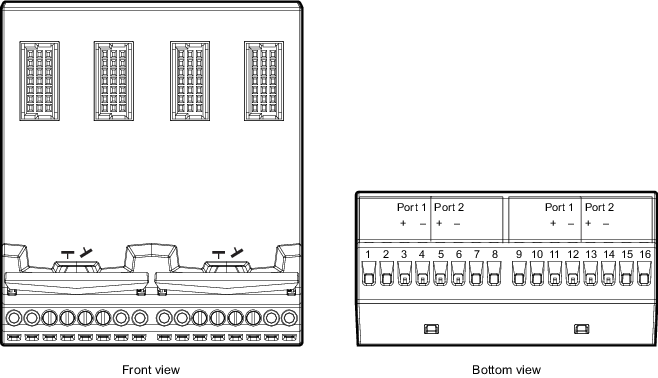

Figure: Redundant H1 with Integrated PowerTerminal Block
