Installation notes
The DeltaV SIS Adapter allows S-series controllers to recognize Logic Solvers installed on M-series I/O carriers. S-series controllers do not recognize M-series I/O.
- The DeltaV SIS adapter installs on T-type DIN rails.

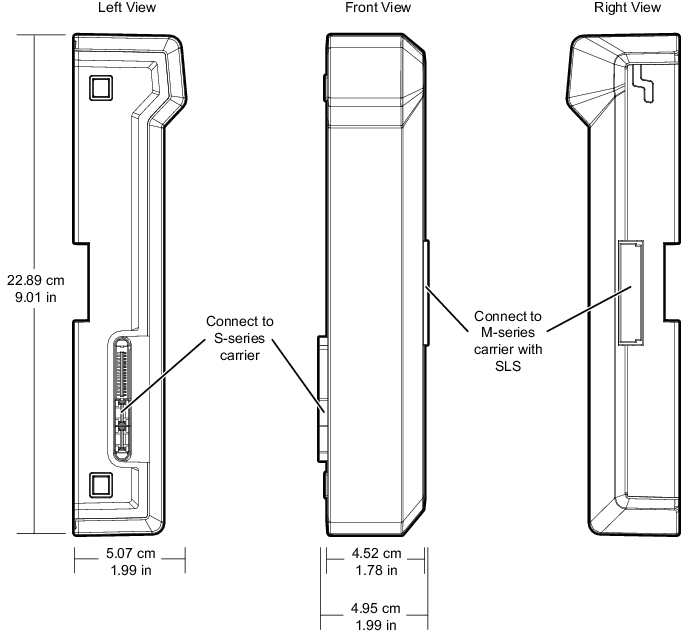

- The DeltaV SIS adapter can connect between an S-series Power / Controller carrier or an S-series 8-Wide I/O Carrier and an M-series 8-wide I/O interface carrier (KJ4001X1-BB1) on the same DIN rail to support Logic Solvers installed on the 8-wide I/O interface carrier (KJ4001X1-BB1). Connect the SIS adapter to the carrier by sliding together the pins on the sides of the extenders and carriers.
- If left and right extenders are used to extend power from an 8-Wide I/O carrier on one DIN rail to an 8-wide I/O interface carrier (KJ4001X1-BB1) holding Logic Solvers on another DIN rail, the DeltaV SIS Adapter connects between the left extender and the 8-wide I/O interface carrier (KJ4001X1-BB1). Connect the adapter to the carrier by sliding together the pins on the sides of the extenders and carriers.
