Simplex H1 4-port Plus Terminal Block specifications

Installation notes

This terminal block is used to terminate wiring for the simplex S-series H1 4-port Plus card. Set the terminal block key to D2 before installing the card.

Table: Simplex H1 4-port Plus Terminal Block specifications
Item	Specification
Voltage rating	35 VDC
Maximum current	100 mA maximum
Isolation	Each channel is isolated from each other and factory tested to 1000 VDC.
Mounting	Assigned slot of I/O carrier

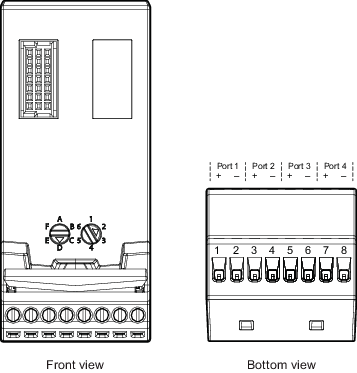

Figure: Simplex H1 4-port Plus Terminal Block
