Installation notes
- This terminal block is used to terminate wiring for the simplex S-series AO 16-channel 4-20 mA HART Plus card. Set the terminal block key to A5 before installing the card.
Specifications
| Item | Specification |
|---|---|
| Voltage rating | 30 VDC |
| Maximum current per channel | 200 mA |
| Mounting | Assigned slot of I/O carrier |
Terminal block connections

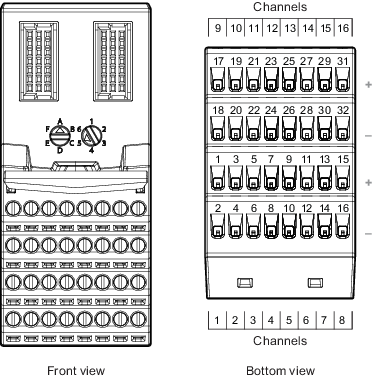

Figure: Simplex 16-channel Analog Output Terminal Block
