Using multiple DeltaV bulk power supplies for redundancy and load sharing in non safety applications

The DeltaV Bulk Power Supplies can be used in non safety applications that require load sharing and redundancy. Redundancy can be achieved by using an n+ power scheme where n+ refers to using one more power supply than is required for continual steady state operation. N+ redundancy schemes are typically used for high integrity field power applications.

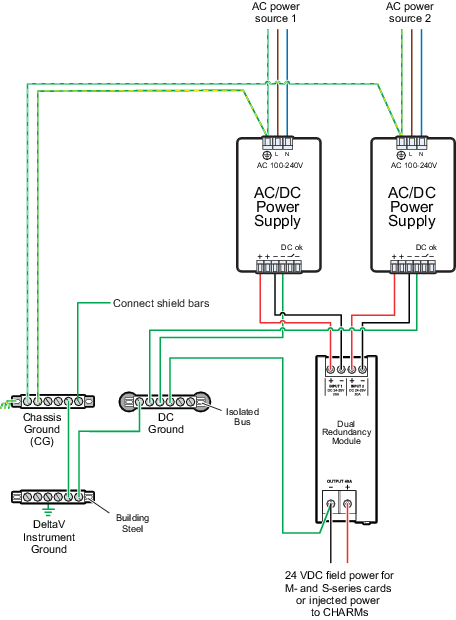

Figure: Redundant bulk power with redundancy modules in a non safety application

Another type of redundancy requires powering one system power supply from one bulk power supply and the redundant system power supply from another bulk power supply as shown in the following image.

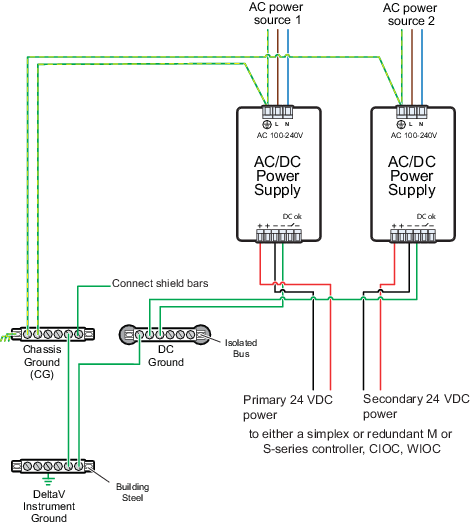

Figure: Redundant bulk power supplies feeding primary and secondary system power supplies in a non safety application

The highest integrity power scheme combines two bulk power supplies through a redundancy module to power one system power supply and a second pair of redundant bulk power supplies with a redundancy module to power a redundant system power supply.

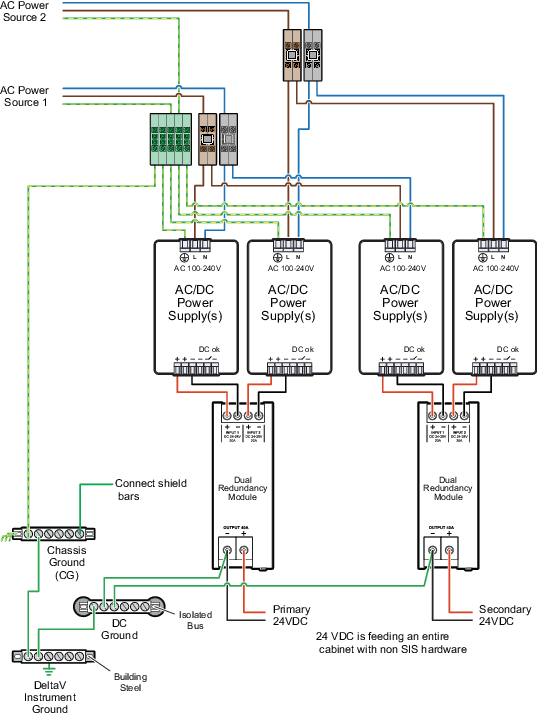

Figure: Redundant bulk power with redundancy modules feeding primary and secondary system power supplies in non safety applications with increased power requirements
