Connecting DI and DO Mass Connection Boards

The following images show how to connect the DI Mass Connection Boards together and how to connect the DO Mass Connection Boards together.

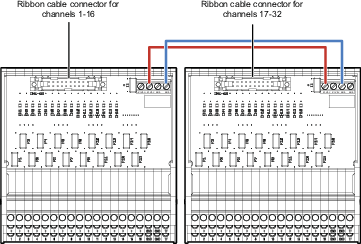

Figure: Connected DI Mass Connection Boards

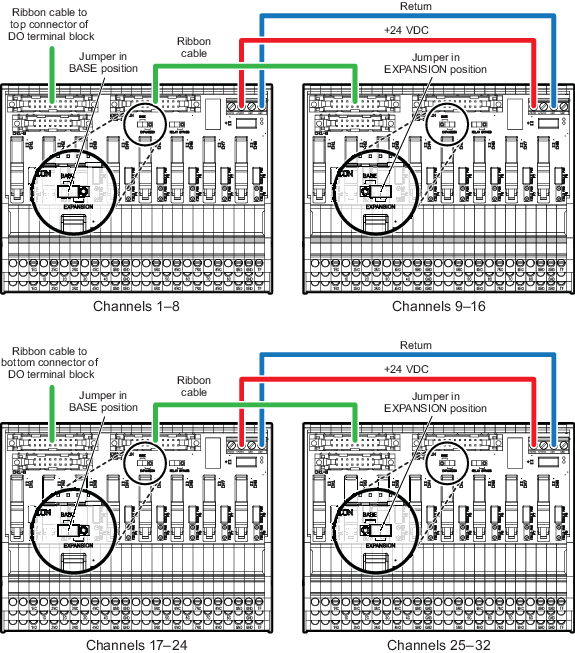

Figure: Connected DO Mass Connection Boards
