Install a Separation Wall

A Separation Wall must be installed on every I.S. baseplate and every component, such as Column Extenders and Column Terminators, installed after the baseplates.

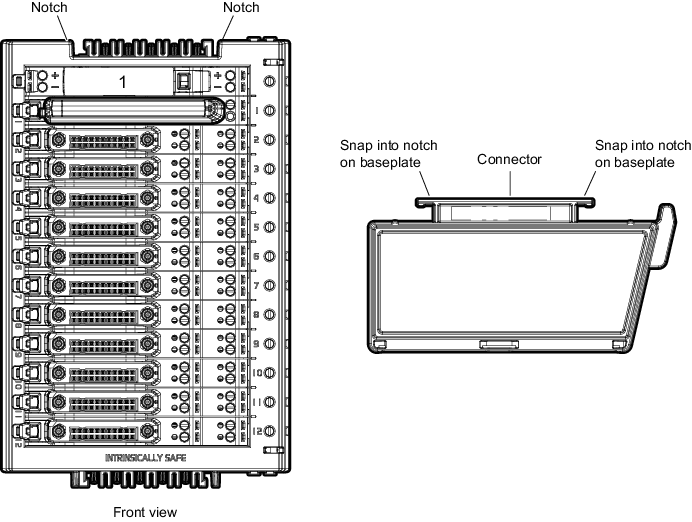

  1. Locate the notches on the top of the I.S. Baseplate, Column Extender, or Column Terminator.
  2. Locate the connector on the Separation Wall.
  3. Snap the connector on the Separation Wall into the notches on the baseplate, extender, or terminator.

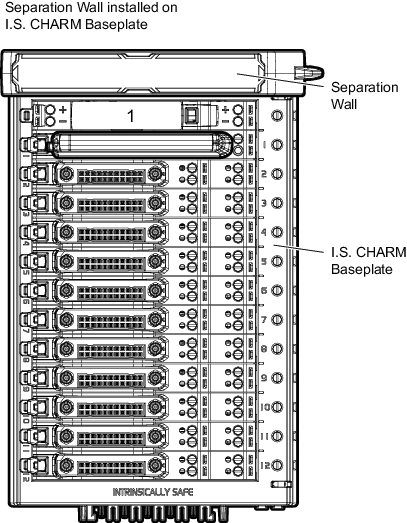

    Figure: Installed Separation Wall
