Install CHARM I/O Cards

CHARM I/O Cards (CIOCs) install on the CHARM I/O Carrier. There are two slots on the carrier for redundant CIOCs.

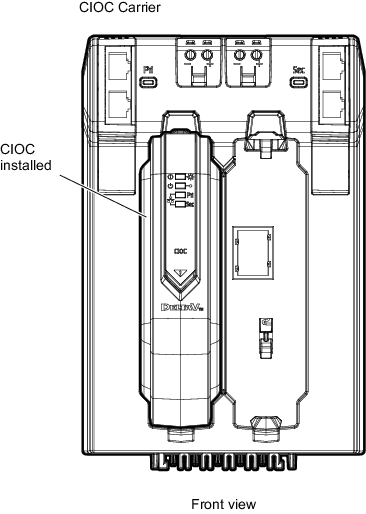

Figure: Installing a CIOC


  1. Align the first CIOC with a slot on the CHARM I/O Carrier.
  2. Push the CIOC to snap it into the slot on the carrier.
  3. Install a second CIOC in the other slot for redundancy.
