Install I/O cards onto an 8-Wide I/O Carrier

S-series I/O cards snap onto S-series terminal blocks installed on an 8-Wide I/O Carrier.

WARNING!

I/O cards are designed to be installed on terminal blocks. The terminal block guides the card as the retention latch engages.

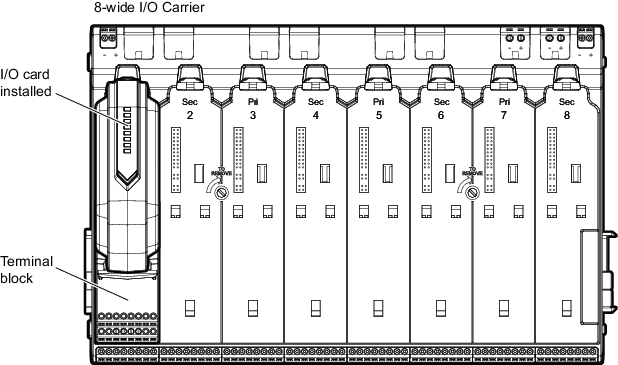

Figure: Installing I/O cards


  1. Place the bottom of the card on the terminal block and align the top of the card with the card housing on the 8-Wide I/O Carrier.
  2. Push the card to snap it into place.
