Install I.S. CHARMs

I.S. CHARMs install in I.S. CHARM Terminal Blocks on the I.S. CHARM Baseplate.

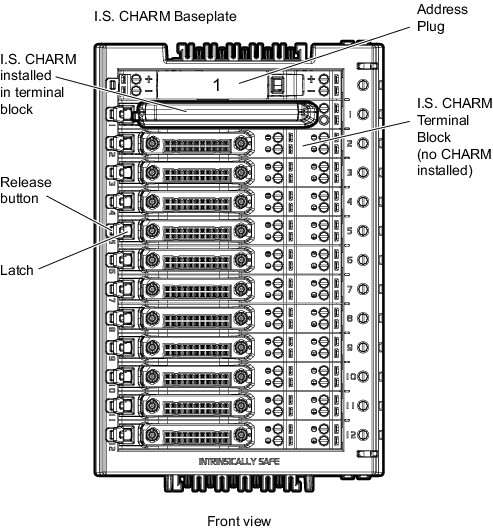

Figure: Installing an I.S. CHARM


  1. Open the latch on an I.S. Terminal Block.
  2. Insert an I.S. CHARM into the terminal block and push the I.S. CHARM until the latch closes.
    Note

    Most I.S. CHARM Terminal Blocks are automatically keyed to the first I.S. CHARM installed. However, the I.S.CHARM Thermocouple mV Terminal Block has a fixed key setting and cannot be reset.
