Label the CHARMs installed on each baseplate

The CHARM labeling component consist of a label support that holds a label and its protective plastic cover. Remove the label support from the baseplate before writing or typing the CHARM IDs on the label.

Note

The image shows the labeling component on a CHARM Baseplate. If you are labeling I.S. CHARMs, install the labeling component on an I.S. CHARM Baseplate.

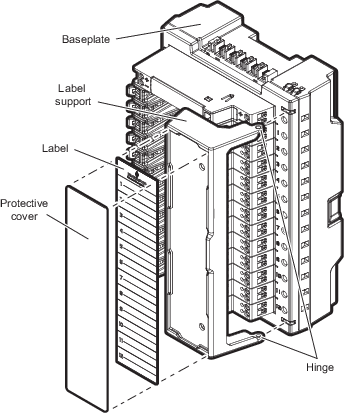

Figure: CHARM labeling component


  1. Press the label support at the top hinge and remove it from the hinge post.
  2. Lift the support off of the bottom hinge post.
    The label support is now free of the baseplate.
  3. Slide the protective plastic cover off of the label being careful not to bend or fold it.
  4. Slide the label from the label support being careful not to bend or fold it.
  5. Write or type the CHARM IDs in the preformatted areas on the label.
  6. Slide the completed label back into the support from the top, being sure that the label passes under the label retainers and is properly seated under the top and bottom corner tabs.
  7. Repeat the previous step and insert the protective plastic cover over the label.
  8. Reattach the label support to the baseplate.
