Control Network Specifications > Third Party Switches and Cable

48-Port 10/100Mbit Switch with 2 Gigabit Multi-Function Ports

Specifications

Table: 48-Port 10/100Mbit Switch with two Gigabit Multi-Function Ports

Item

Specification

Model

Cisco 48-Port 10/100Mbit twisted pair(1)

(Catalyst 2960-48TC-L)

Type

  • 48, 10/100Mbit twisted pair ports
  • 2, gigabit multi-function ports that can be used as either a 10/100/1000Mbit twisted pair port or a SFP-based port.
Note

Each multi-function port can be used as either twisted pair or SFP. Both port types cannot be used at the same time.

(1) Refer to the important information about Cisco switch configuration in Third Party Switches and Cable.

Front view

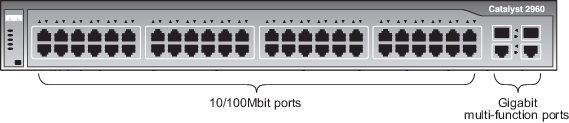

The following figure shows the front view of the 48-port 10/100Mbit switch with two gigabit multi-function ports.

Figure: Front View of the 48-Port 10/100Mbit Switch with two Gigabit Multi-function Ports
