Control Network Specifications > Third Party Switches and Cable

48-Port 10/100Mbit Switch with 2 RJ45 Ports

Specifications

Table: 48-Port 10/100Mbit Switch with two RJ45 Ports

Item

Specification

Model

Cisco 48-Port twisted pair(1)

(Catalyst 2960-48TT-L)

Type

  • 48, 10/100Mbit twisted pair ports
  • 2, RJ45 10/100/1000Mbit twisted pair ports
(1) Refer to the important information about Cisco switch configuration in Third Party Switches and Cable.

Front View

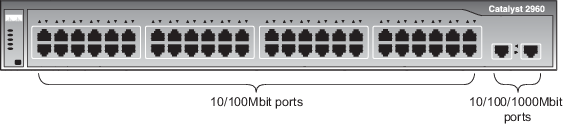

The following figure shows the front view of the 48-port 10/100Mbit switch with two RJ45 gigabit uplink ports.

Figure: Front View of the 48-Port 10/100Mbit Switch with two RJ45 Ports
