4-Wide Horizontal I/O Interface Carrier

Table: 4-Wide I/O Carrier specifications
Item	Specification
Capacity	Four I/O cards with terminal blocks.
Maximum current	LocalBus (powers I/O cards): 8 A. For large systems, use the LocalBus extenders to add more power. Bussed field power bus (per I/O card): 3.2 A at 30 VDC or 250 VAC for each connection.
LocalBus cable lengths	0.87 m (2.8 ft) 1.2 m (3.9 ft) (standard) 1.53 m (5.0 ft)

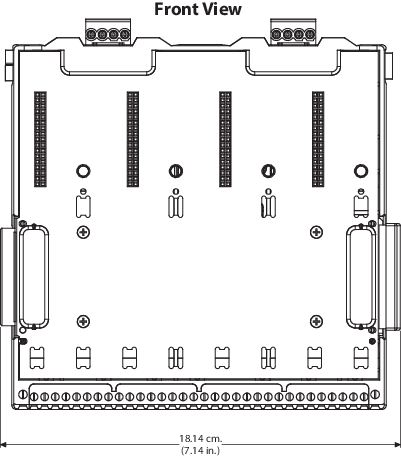

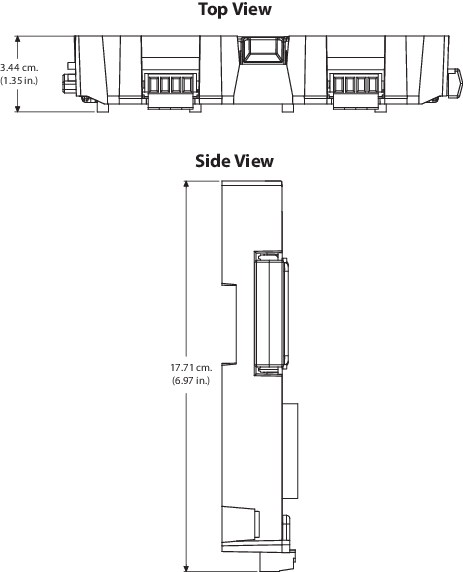

Figure: 4-Wide Horizontal I/O Interface Carrier Dimensions

The following figure shows the terminal connections for connecting bussed field power to the 4-Wide I/O Carrier. Note that the positions of the supply and supply return terminals differ from those of the DeltaV I/O carriers.

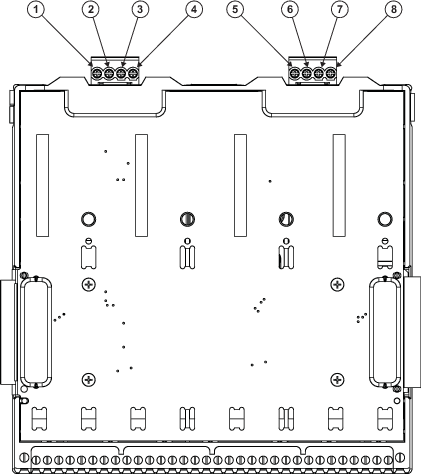

Figure: I/O Carrier parts locator diagram

Callout	Description
	Supply return connection for I/O Slot 1.
	Supply connection for I/O Slot 1.
	Supply return connection for I/O Slot 2.
	Supply connection for I/O Slot 2.
	Supply return connection for I/O Slot 3.
	Supply connection for I/O Slot 3.
	Supply return connection for I/O Slot 4.
	Supply connection for I/O Slot 4.

Note

When a 4-Wide Horizontal I/O Interface Carrier is used with an M-series controller or Remote Interface Unit, DeltaV software displays four additional blank I/O slots that do not exist. For example, if a 4-Wide Horizontal I/O Interface Carrier is installed to the right of the first 8-Wide I/O Interface Carrier in the I/O subsystem, DeltaV software displays I/O Slots 9-12 and blank I/O Slots 13-16. If another carrier is installed to the right of the 4-Wide Horizontal I/O Interface Carrier, the first slot of that carrier is I/O Slot 17. This behavior does not occur when the carrier is used with a PK Controller.
