4-Wide Legacy Vertical Power/Controller Carrier

Table: 4-Wide Legacy Vertical Power/Controller Carrier (Top/Bottom) Specifications
Item	Specification
Capacity	Two system power supplies and two controllers or three system power supplies and one controller

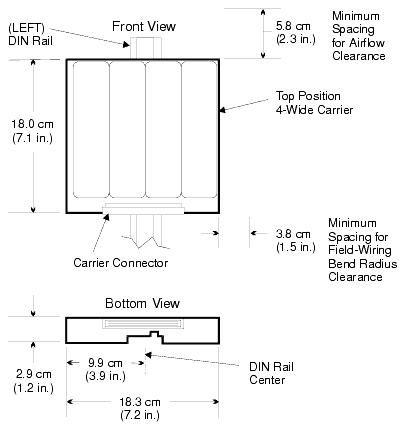

Figure: 4-Wide Legacy Vertical Power/Controller Carrier Dimensions

The dimensions for the bottom Legacy Vertical 4-wide power/controller carrier are the same as those for the top Legacy Vertical 4-wide power/controller carrier (shown above). The carrier connector on the bottom Legacy Vertical 4-wide power/controller carrier is located on the top of the carrier.
