Control Network Specifications > Third Party Switches and Cable

8-Port 10/100Mbit Switch with 1 Gigabit Multi-Function Port

Item Specification
Model

Cisco 8-Port 10/100Mbit twisted pair (Catalyst 2960-8TC-L)(1)

Type
  • 8, 10/100Mbit twisted pair ports
  • 1, gigabit multi-function port that can be used as either a 10/100/1000Mbit twisted pair port or a SFP-based port.
Note

Either the twisted pair port or the SFP-based port can be used. Both ports cannot be used at the same time.

(1) Refer to the important information about Cisco switch configuration in Third Party Switches and Cable.

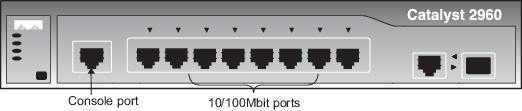

The following figure shows the front view of the 8-port 10/100Mbit switch with one gigabit multi-function port.

Figure: Front View of the 8-Port 10/100Mbit Switch with one Gigabit Multi-function Port
