DeltaV FP20 Smart Switches

Specifications

The DeltaV FP20 Smart Switches are all 8-port switches. Each of the FP20 Smart Switches has 6, 10/100Mbit twisted pair ports, two of the eight ports on each switch are fiber uplink ports, twisted pair uplink ports, or a combination of fiber and twisted pair uplink ports.

Model

Type

FP20-6TX2TX

FP20-6TX2TX-ES(1)

8, 10/100Mbit RJ45 twisted pair ports

FP20-6TX1MM1TX

FP20-6TX1MM1TX-ES

  • 6, 10/100Mbit RJ45 twisted pair ports
  • 1, 100Mbit (DSC) multimode fiber uplink port
  • 1, 10/100Mbit RJ45 twisted pair uplink port

FP20-6TX1SM1TX

FP20-6TX1SM1TX-ES

  • 6, 10/100Mbit RJ45 twisted pair ports
  • 1, 100Mbit (DSC) single mode fiber uplink port
  • 1, 10/100Mbit RJ45 twisted pair uplink port

FP20-6TX1SMLH1TX

FP20-6TX1SMLH1TX-ES

  • 6, 10/100Mbit RJ45 twisted pair ports
  • 1, 100Mbit (DSC) single mode fiber, long haul uplink port
  • 1, 10/100Mbit RJ45 twisted pair uplink port

FP20-6TX2MM

FP20-6TX2MM-ES

  • 6, 10/100Mbit RJ45 twisted pair ports
  • 2, 100Mbit (DSC) multimode fiber uplink ports

FP20-6TX2SM

FP20-6TX2SM-ES

  • 6, 10/100Mbit RJ45 twisted pair ports
  • 2, 100Mbit (DSC) single mode fiber uplink ports

FP20-6TX2SMLH

FP20-6TX2SMLH-ES

  • 6, 10/100Mbit RJ45 twisted pair ports
  • 2, 100Mbit (DSC) single mode fiber, long haul uplink ports
(1) The ES version of the switches have an extended temperature range and conformal coating.

Front Views

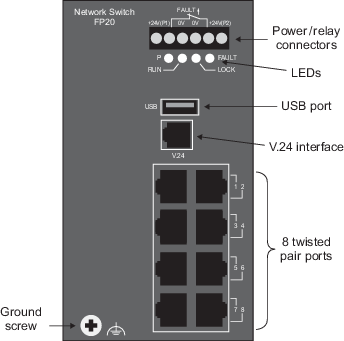

The following figure shows the front view of the DeltaV FP20-6TX2TX Smart Switch. This switch has eight twisted pair ports.

Figure: Front View of the DeltaV FP20-6TX2TX Smart Switch

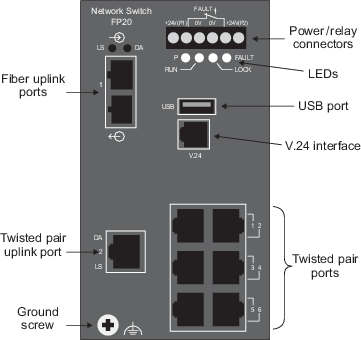

The following figure shows the front view of the DeltaV FP20 Smart Switches with six twisted pair ports, one twisted pair uplink port, and one fiber uplink port (model numbers FP20-6TX1MM1TX, FP20-6TX1SM1TX, FP20-6TX1SMLH1TX)

Figure: Front View of the DeltaV FP20 Smart Switches with Fiber and Twisted Pair Uplink Ports

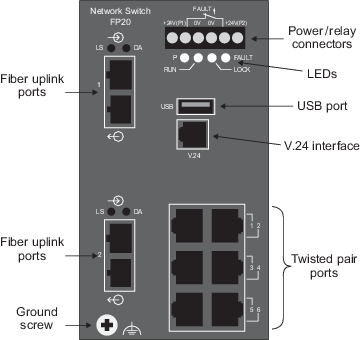

The following figure shows the front view of the DeltaV FP20 Smart Switches with six twisted pair ports and two fiber uplink ports (model numbers FP20-6TX2MM, FP20-6TX2SM, and FP20-6TX2SMLH).

Figure: Front View of the DeltaV FP20 Smart Switches with Two Fiber Uplink Ports
