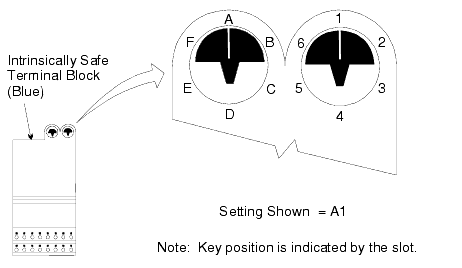

The following table lists I.S. I/O card keying and the recommended I.S. terminal blocks.
|
I/O Card |
I/O Card Keying |
Recommended I/O Terminal Block |
Optional I/O Terminal Block |
|---|---|---|---|
|
I.S. AI, 8-Channel, 4-20 mA, HART |
A1 |
I.S. 8-channel terminal block |
I.S. loop disconnect 8-channel terminal block |
|
I.S. AO, 8-Channel, 4-20 mA (HART) |
A4 |
I.S. 8-channel terminal block |
I.S. loop disconnect 8-channel terminal block |
|
I.S. DO, 4-Channel |
B5 |
I.S. 8-channel terminal block |
I.S. loop disconnect 8-channel terminal block |
|
I.S. DI, 16-Channel(1) |
B1 |
I.S. 16-channel terminal block |
(1) The I.S. DI, 16-channel card will
not communicate with the DeltaV controller unless the I.S. 16-channel terminal
block is used.
