Carrier Specifications

Intrinsically Safe 8-Wide Horizontal Carrier

Table: I.S. 8-Wide Horizontal I/O Interface Carrier Specifications
Item Specification
Capacity Eight I.S. I/O cards with terminal blocks.
LocalBus cable
  • 1.20 m (3.94 ft) nominal length
  • 2.00 m (6.56 ft) nominal length

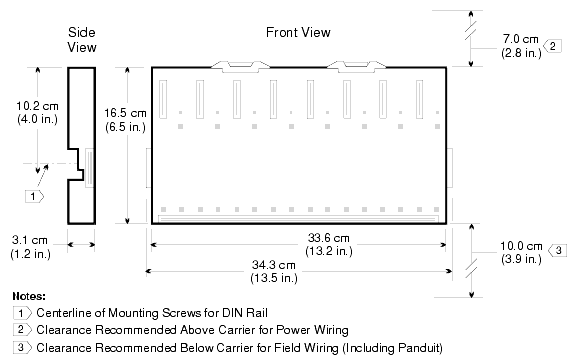

Figure: I.S. 8-Wide Horizontal Carrier Dimensions
