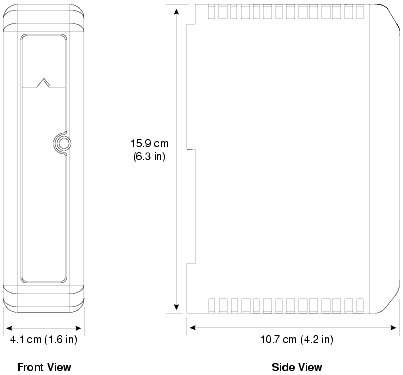

The I.S. LocalBus Isolator separates non-I.S. components such as I/O cards and controllers from I.S. components. The following figure shows the I.S. LocalBus Isolator dimensions.
| Item | Specification |
|---|---|
| Input | 12 V @ 60 mA maximum |
| Output | 12 V @ 60 mA maximum |
| Power dissipation within module | 1.2 W maximum |
| Mounting | LocalBus Isolator carrier |
The controller is non-I.S. You must always use an I.S. LocalBus Isolator to isolate the controller from I.S. cards.
