Installation Notes

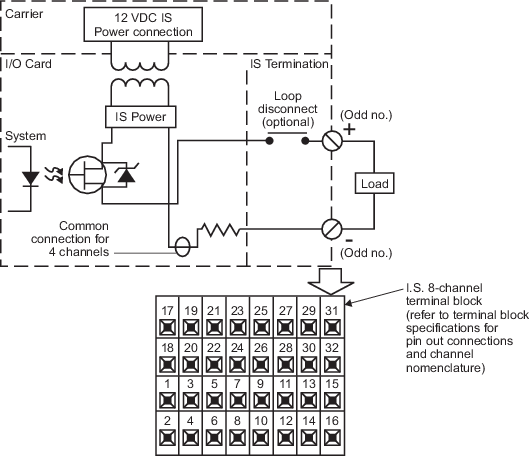

The I.S. 8-channel terminal block is recommended to provide screw terminations for field wiring for the I.S. DO, 4-channel card. An optional block is the I.S. loop disconnect 8-channel terminal block.
Specifications
| Item | Specification |
|---|---|
| Number of channels | Four |
| Isolation |
LocalBus to any channel: 60 VAC Between channels: None I.S. channel to non-I.S. rail: 250 VAC |
| Output range | 22 V (open circuit) 11 V at 45 mA 25 VDC (maximum) |
| Output rating | 45 mA (min.) |
| Off state leakage | N/A |
| LocalBus current (12 VDC nominal), per card | 560 mA |
| Current limit per channel | 45 mA |
| Configurable channel types |
Discrete output : Output stays in the last state submitted by the controller. Momentary output : Output is active for a pre-configured time period (100 ms to 100 s). Continuous pulse output : Output is active as a percentage of a pre-configured base time period (100 ms to 100 s). Resolution is 2 ms. |
| Optional loop disconnect | Yes |
| Mounting | Assigned slot of I/O carrier |
