DeltaV Legacy Bulk Power Supplies

Legacy Panel-Mounted Bulk AC to 24 VDC and Bulk AC to 12 VDC

Specifications

Table: Legacy Panel-Mounted Bulk AC to 24 VDC and Bulk AC to 12 VDC
Item Specification
AC input 120/230 VAC nominal, 90 VAC to 264 VAC range, 47 Hz to 63 Hz, single-phase
Output rating 24 VDC at 12.5 A 12 VDC at 25 A
DC output power options 300 W at 60°C
Input 5 A
Inrush current 100/40 A maximum (hot/cold start )
Hold-up time 20 ms (from 90 to 264 VAC input)
Ripple and Noise 1% PK to PK max (Bandwidth 20 MHz)
Output overvoltage protection 125% (±5%)
Power factor 0.98 at full rated load
Fuse protection 15 A, 250 VAC 3AB or equivalent, non-replaceable fuses.
Note

The internal fuse is for an internal fault condition only. Shorts and overload will not cause the fuse to fail.

Dimensions with mounting plate
  • Height: 12.70 cm (5 in.)
  • Width: 39.37 cm (15.5 in.)
  • Depth: 6.35 cm (2.5 in.)

Images

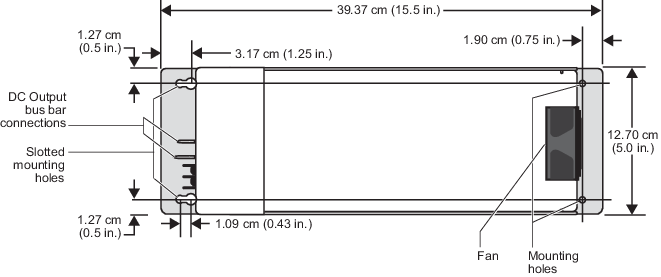

Figure: Top View, Legacy Panel-Mounted Bulk AC to 24 VDC and Bulk AC to 12 VDC Power Supply

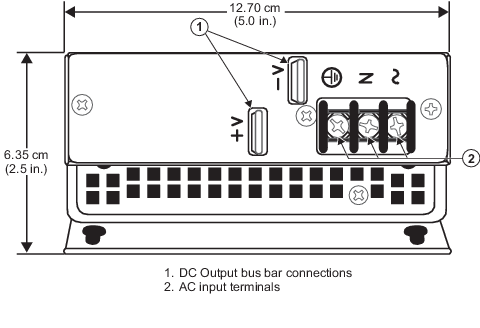

Figure: End View, Legacy Panel-Mounted Bulk AC to 24 VDC and Bulk AC to 12 VDC Power Supply
