Interface Specifications > Terminal Blocks

Interface Terminal Block

The AS-Interface and Serial cards use the Interface terminal block to provide terminations for wiring.

Specifications

Table: Interface Terminal Block Specifications
Item Specification
Voltage Rating 35 VDC
Max Current 1.0 A
Mounting Assigned slot of I/O carrier

Terminal Block Connections

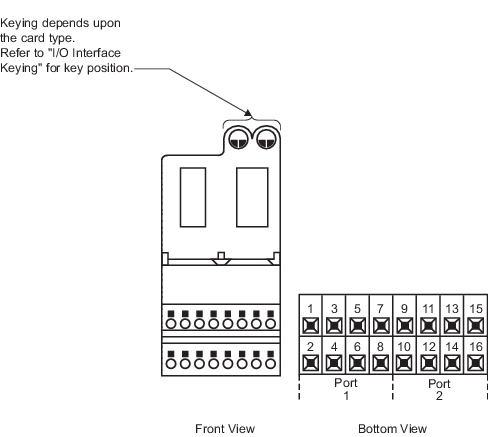

Figure: Interface Terminal Block
