Interface Specifications > Terminal Blocks

Isolated Input Terminal Block

The Isolated Input card uses the Isolated Input terminal block to provide terminations for wiring.

Specifications

Item Specification
Voltage Rating 10 VAC/DC
Max Current 500 mA
Mounting Assigned slot of I/O carrier

Terminal Block Connections

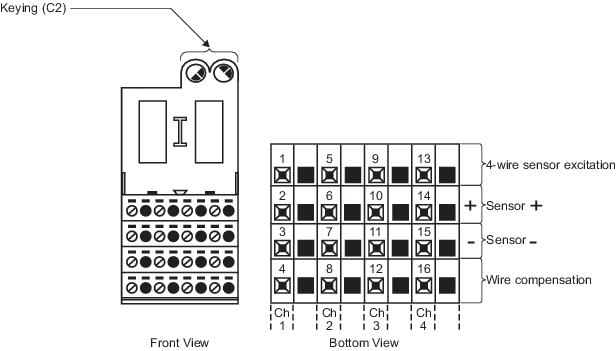

Figure: Isolated Input Terminal Block
