Interface Specifications > Terminal Blocks

Thermocouple Terminal Block

The Series 1 and Series 2 Thermocouple, mV card uses either the Thermocouple or I/O terminal block to provide terminations for wiring.

Specifications

Table: Thermocouple, mV Terminal Block
Item Specification
Voltage rating 5 VDC
Maximum current 100 mA
Mounting Assigned slot of I/O carrier

Terminal Block Connections

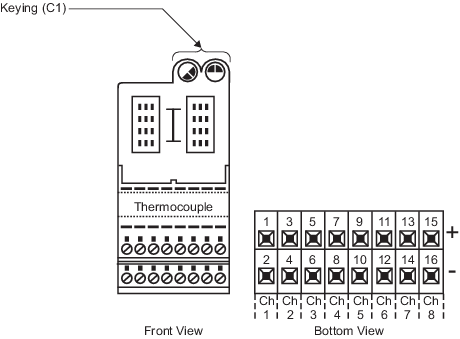

Figure: Thermocouple, mV Terminal Block
