Redundant 16-Channel Analog Input Terminal Block

Installation Notes

The Redundant 16-Channel Analog Input Terminal Block provides wiring terminations for the 2 or 4-wire redundant AI, 16-Channel, 4-20 mA , HART, Series 2 Plus card.
Set the keys on the terminal block to A6 to match the AI, 16-Channel, 4-20 mA , HART, Series 2 Plus card.

Table: Redundant 16-Channel Analog Input Terminal Block specifications
Item	Specification
Voltage rating	30 VDC
Maximum current	500 mA per I/O channel
Mounting	Assigned slots of I/O carrier. The lower slot number must be odd and the upper slot number must be the next higher even number. For example, slots 1 and 2, slots 3 and 4, and slots 5 and 6 are valid pairs. Slots 2 and 3 are not a valid pair.

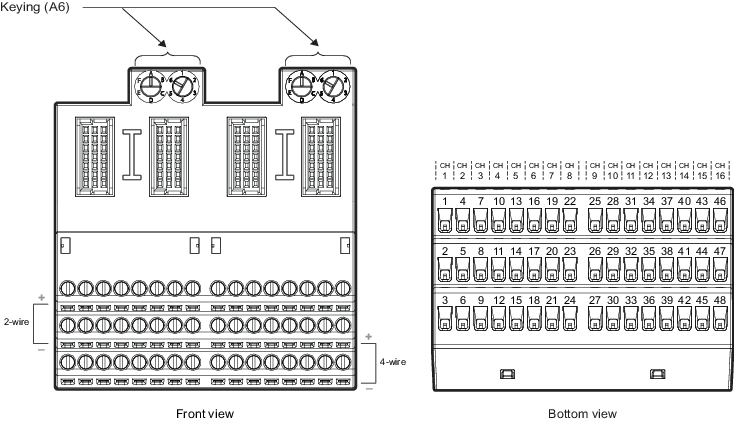

Figure: Redundant 16-Channel Analog Input Terminal Block
