The simplex 16-Channel
Analog Output Terminal Block provides wiring terminations for the AO,
16-Channel, 4-20 mA HART, Series 2 Plus card in simplex mode.
Set the keys on the
terminal block to A5 to match the AO, 16-Channel, 4-20 mA HART, Series 2 Plus
card.
Specifications
Table: Simplex 16-Channel Analog Output Terminal Block
specifications
Item
Specification
Voltage rating
30 VDC
Maximum current
200 mA per channel
Mounting
Assigned slot of I/O carrier.
Terminal Block Connections

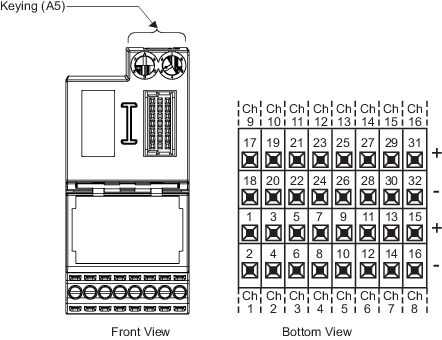

Figure: Simplex 16-Channel Analog Output Terminal Block
