Simplex 4-Wire 16-Channel Analog Input Terminal Block
Installation Notes
The simplex 4-wire
16-Channel Analog Input Terminal Block provides 4-wire terminations for the AI,
16-Channel, 4-20 mA HART, Series 2 Plus card in simplex mode.
Set the keys on the
terminal block to A6 to match the AI, 16-Channel, 4-20 mA HART, Series 2 Plus
card.
Specifications
Table: Simplex 4-Wire 16-Channel Analog Input Terminal Block
specifications
Item
Specification
Voltage rating
30 VDC
Maximum current
500 mA per channel
Mounting
Assigned slot of I/O carrier.
Terminal Block Connections

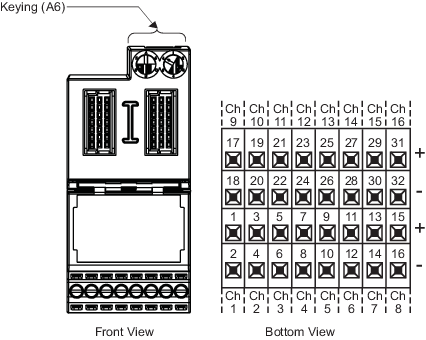

Figure: Simplex 4-Wire 16-Channel Analog Input Terminal Block
